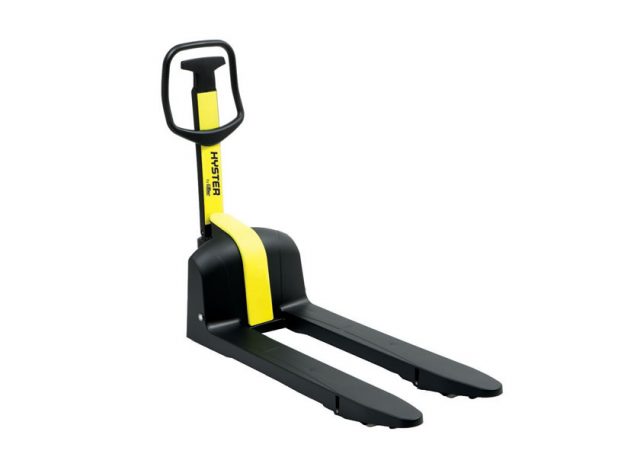

Techno polymer Line
Techno polymer Line
Hlavné detaily
Naša nová rada ručných paletových vozíkov Techno polymer Line bola vyvinutá s použitím najnovších technológií. Sú šetrné k životnému prostrediu a sú zárukou robustnej konštrukcie a výhod pri práci a manipulácii.
- Váha vozíka: 38kg
- Extrémne tichý
- Dostupný tiež v pozinkovanej a nerezovej verzii.
- 24 mesiacov záruka
Modely
| Characteristics | |||
|---|---|---|---|
| Manufacturer | Hyster | ||
| Model designation | TP 1.0 | ||
| Power: battery, diesel, LPG, electric mains | Manual | ||
| Operation: manual, pedestrian, stand, seat, order picker | Manual / Tiller | ||
| Load capacity | Q (kg) | 1000 | |
| Load centre | c (mm) | 600 | |
| Load distance | x (mm) | 925 | |
| Wheel base | y (mm) | 1182 | |
| Unladen weight | (kg) | 38 | |
| Wheels & Tyres | |||
| Tyres: rubber, polyurethane, vulkolan front / rear | PU / Nylon | ||
| Tyre size, front | 0 180 x 40 | ||
| Tyre size, rear | 0 75 x 80 | 0 60 x 60 | |
| Wheels, number front / rear | 2/2 | 2/4 | |
| Track width, front | (mm) | 160 | |
| Track width, rear | (mm) | 365 | |
| Dimensions | |||
| Lift height | (mm) | 115 | |
| Height of tiller arm in working position | h,4 (mm) | 1175 | |
| Height, lowered | h,3 (mm) | 85 | |
| Overall length | I, (mm) | 1575 | |
| Length to face of forks | I 2 (mm) | 425 | |
| Overall width | b 1 /b 2 (mm) | 520 | |
| Fork dimensions | (mm) | 60 155 | 1150 |
| Outside fork width | b 5 (mm) | 520 | |
| Ground clearance, centre of wheelbase | m 2 (mm) | 25 | |
| Aisle width with for pallets 1000 x 1200 mm crosswise | (mm) | 1644 | |
| Aisle width pallets for 800 x 1200 mm lengthwise | (mm) | 1844 | |
| Turning radius | Wa (mm) | 1369 |
